1PCS NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator

    3 items left

    Price Match Gurantee: We won't be beat on price. We'll match the product prices of key online and local competitors.

    Return Policy: You have 365 days to return your item to us in its orginal condition. Jetcube customers enjoy, free returns, and 24/7 customer service!

    Delivery: On time delivery 8-12 Days. If you are not 100% satisfied with your purchase just go through our easy online return process or call us 24/7 at (718) 650-8137

    Payments:
    Credit Cards processed by PayPal

    Shipping:
    Item location: New York, United States

    Ships to:
    International Shipping made easy to over 200 countries worldwide with our global shipping program.

    Guarantee:
    Get the item you ordered or get your money back.
    Covers your purchase price and original shipping.


    Report incorrect product information.

    Dissipation Power: 5v;Model Number: new;Type: Voltage Regulator;is_customized: Yes;Application: Computer;Operating Temperature: 1;Condition: New;Supply Voltage: esp8266;

    NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Generator



    Parameters:

    Product name: NE555 pulse module

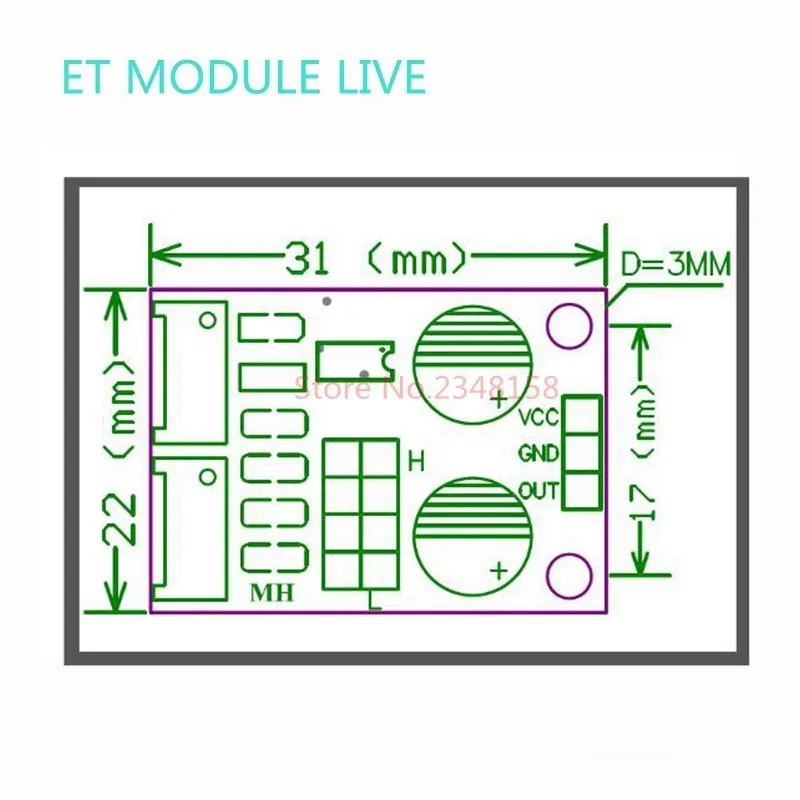

    Product size: 31.0 mm * 31.0 mm * 15.0 mm (l x w x h)

    Colours:Red        Package Weight: :7.52 g/pcs

    Materials: FR4 + electronic components

    Size chart:







    Instructions:











    Performance:

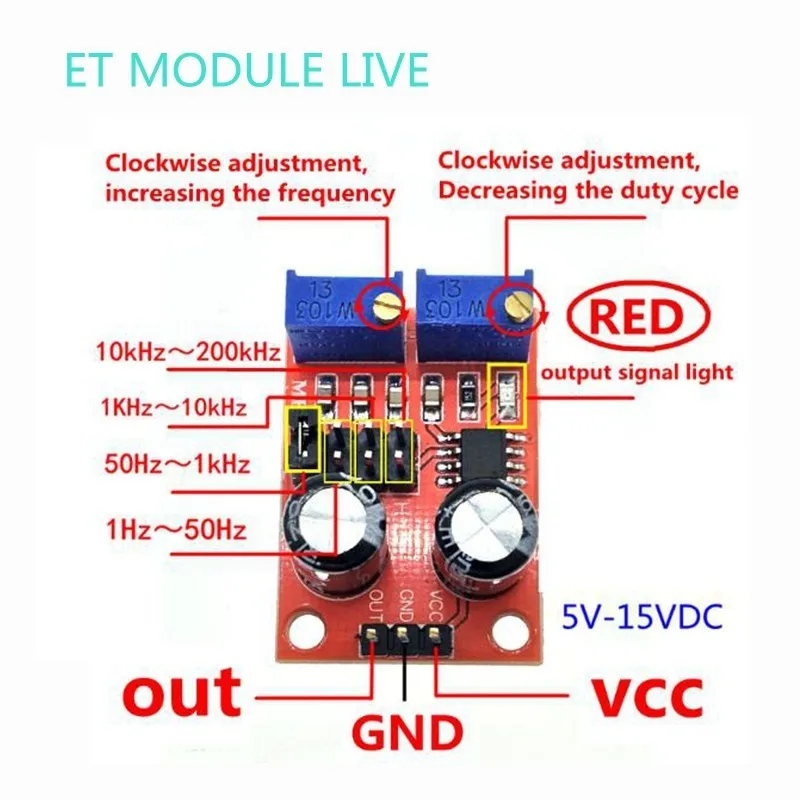

    1.Input Voltage: 5V-15VDC. when power supply is 5V , the output current can be 15MA around;when 12V power supply, the output current can 35MA around;
    2.Input current: >=100MA;
    3.Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different)
    4.Maximum output current: >=15MA (5V power supply, V-PP greater than 50%), >=35MA (12V power supply, V-PP greater than 50%)
    4.Output with LED indication(low level ,LED will on; high level,LED will off;low frequency, the LED flashes);
    5.The output requency range is selectable:
     LF file: 1Hz ~ 50Hz  IF file: 50Hz ~ 1kHz
     High-frequency file: 1KHz ~ 10kHz
     HF file: 10kHz ~ 200kHz
    5.Cycle T=0.7 (RA+2RB) C  (RA, RB for 0-10K adjustable);
    Low frequency:C=100UF;   Intermediate frequency:C=1UF;
    M-H frequency: C=0.1UF;   High frequency: C=0.001UF,
    Note:
    Before changing the frequency, please power off
    Application:
    1. Used as a square wave signal generator, offer the square wave signal for the use of the experimental development.
    2. Used to produce driving stepper motor drives, offer the square wave signal.
    3. Adjustable pulse for the use of MCU.
    4. Generate adjustable pulse control circuit.

    NE555 1 NE555 2 NE555
