Electric bike 20 * 4.0 inch aluminum foldable Electric bikes 48V10AH 500W powerful Fat Tire bike Mountain Snow bicycle

0 Review(s) Write a Review
Your Price: $0.00
Part Number: 66354
Availability: In Stock.

Choose Options

specification sheet

Bike Model S9F (Shimano 7-speed)

Wheel Size 20"
Bike Color White&Blue, Black&Red,
Net Weight 22KG

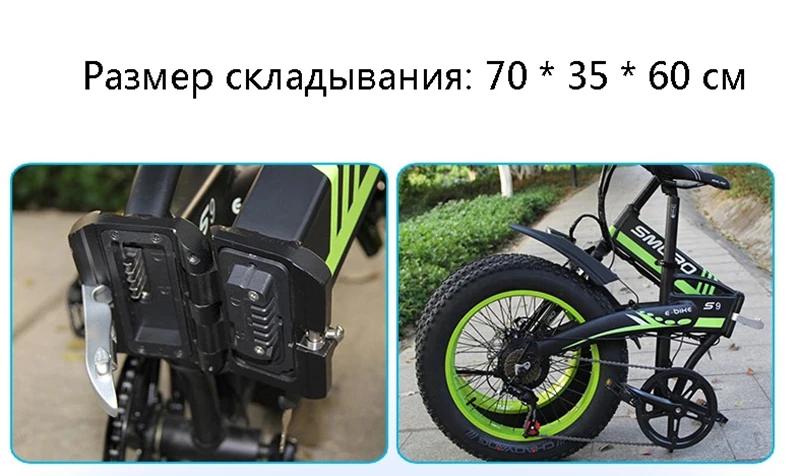

Frame Aluminum alloy 6061 Foldable Frame
Handelbar Sets Aluminum alloy with Matte,H31.8*680,S31.8*90,SP31.6*350mm
Clamps Aluminum alloy,Quick Release 34.9mm
Fork Aluminum Alloy Crown Suspension Fork
Shifting Lever SHIMANO TX50-7

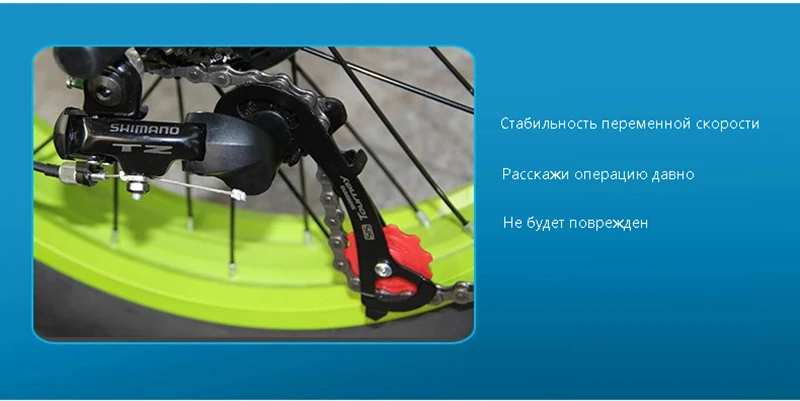

Rear Derailleur SHIMANO TZ50
Cranksets Prowheel, Aluminum alloy,Square hole,
Cassettes SHIMANO TZ21-7,14-28T
Chain YBN-7S
BB KENLI,Square hole,Bearing BB68,Screw
Brake Z.STAR Mechanical Disc Brake
Brake Lever interruption of power supply brake lever
Front Hub Aluminum alloy Hub with Quick Release
Rim Aluminum alloy with Double-Dec ,
Spoke SHUNJIU Circular,High Rigidity,Side pull
Tire Chaoyang 20x4.0
Grips Ergonomics,Comfortable
Saddle Light and Comfortable for MTB
Pedals WP-625 Aluminum alloy for MTB
Accessories Rear Kickstand+Tools
Electric Parameters Specification
Riding Mode Electric Power Assist (5 Shifts)
Pure Electric (5 shifts)
Pure Human Riding
Endurance Mileage Electric Power Assist,50~60KM
Pure Electric,30KM
Max speed 25 km/h
Max Load 120 KG
Battery Lithium Battery(CE,FC,ROSH; EVE Energy) ,48V 10AH
Full charging Time 4-6 Hours
Charging&protect Overvoltage,Overcurrent Protection,etc.
ShortCircuit,ReversecConnection Protection,etc.
Motor XiongDa ,Rear Drive,48V 500W
DC Brushless,Toothed,Low resistance&noise
Max Torque 60 N.M
Waterproof grade IP54
Controller 5 Shifts intelligent control system
Sine wave integrated IC control chip

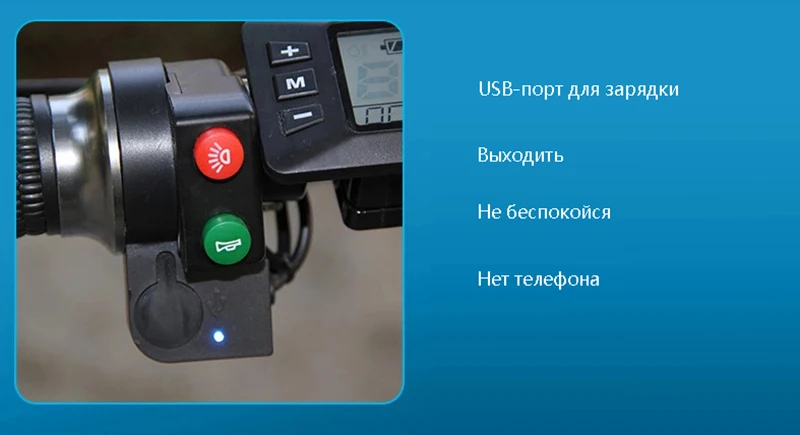

Monitor LCD digital display control instrument
Display Function MPH,Miles,Electricity,Shift,Failure,etc
Setting Function Mileage cleared,Wheel size,etc
Waterproof Grade IPS6
Power assist Sensor 12 Magnetics-Pulse Power assisted Sensor
